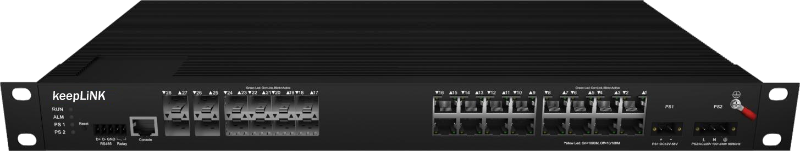

KP-9000-85-12GX16GT-HR-V

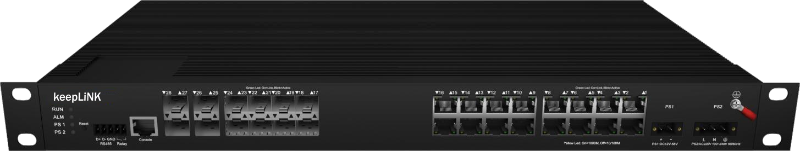

KP-9000-87-12GX16GT-HR-V

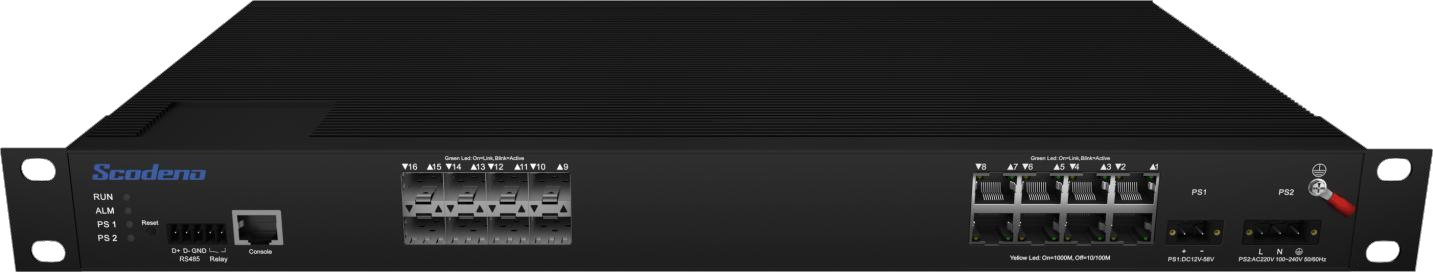

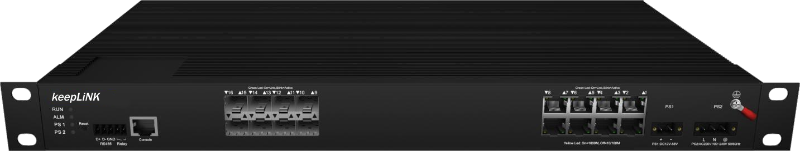

KP-9000-85-8GX8GT-HR-V

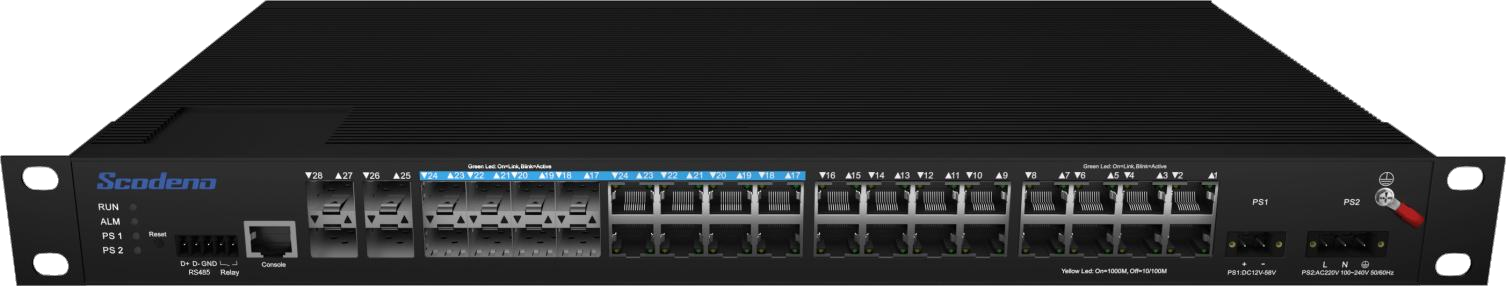

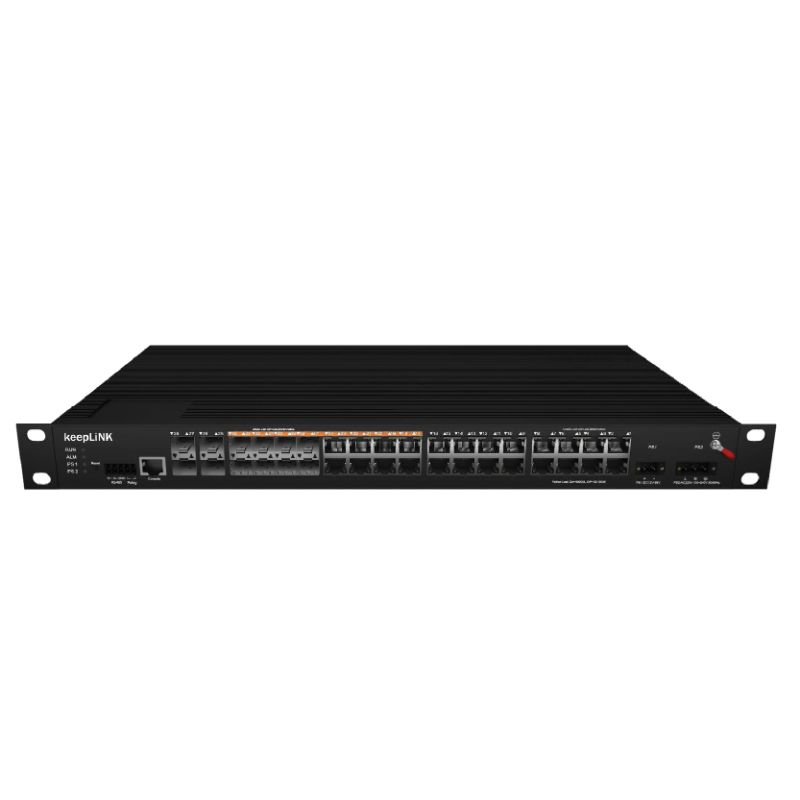

KP-9000-85-4GX8GC16GT-HR-V

Input voltage: DC 12~58V AC 100~240V 50/60Hz

Working temperature: -40 ℃~+75 ℃

Shell: IP40 protection level, fanless design

Inspection report: CE/FCC/RoHS

Anti static: 8KV-15KV

M T B F: 100000 hours

Consult Now Share

Overview

Parameter

Application

Files

Provider Mode Ports
Fixed port			121000 Base-X ，1610/100/1000 Base－T
Management Port			Support console
Power interface			Phoenix terminal, dual power redundancy
LED Indicators			PWR ，Link/ACT LED
Cable type&Transmission distance
Twisted-pair			0-100m（ CAT5e,CAT6）
Monomode optical fiber			20/40/60/80/100KM
Multimode optical fibre			550m
Network Topology
Ring topology			Support
Star topology			Support
Bus topology			Support
Tree Topology			Support
Hybrid topology			Support
Electrical Specifications
input voltage			Non PoE：DC 12-58V , AC 100-240V 50-60HZ PoE :DC48-58V
Total Power consumption			Non PoE full load<36W PoE full load<276W
PoE Support Optional selection
PoE port			1-16
PoE Protocol			802.3af ，802.3at
PoE Pin Assignment			1,2,3,6
PoE Management			Support
Layer 2 Switching
Switching capacity			160G
Packet forwarding rate			95.23Mpps
MAC address table			16K
VLAN support and quantity			支持4K
Buffer			12M
Forwarding delay			<10us
MDI/MDIX			Support
Flow control			Support
Jumbo Frame			Support 10Kbytes
Spanning Tree			Support STP/RSTP/MSTP
Ring Protocol			Support ERPS
Link Aggregation			Support 12组
Multicast			Support IGMP Snooping
Port Mirroring			Support
Storm Control			Support
Interface Counters			Support
QINQ			Support
802.1X			Support
Radius/Mac authentication			Support
Port Isolation			Support
Rmon			Support
NTP client			Support
DHCP client			Support
DHCP snooping			Support
Ping/racert detection			Support
Dyinggasp			Support
DDM			Support
Port security			Support
IP Source Guard			Support
Device scanning			Support
Convergence
ACL			Support 500 ACL entries; Support IP standard ACL; Support MAC extension ACL; Support IP extension ACL;
QOS			Support QoS re labeling and priority mapping; Support SP and WRR queue scheduling; Support entrance and exit speed limits; Support flow based QoS
Management
CLI			Support
Console）			Support
Telnet/SSH			Support
Web management			Support
Manage IP			Support IPV4/IPV6
SNMP			Support SNMPv1/v2c/v3
User Management			Support
System Log			Support
Configuration File Download/Upload			Support
Upgrade Firmware			Support
Environment
Operating temperature			-40℃ ~ +75℃
Storage temperature			-40℃ ~ +75℃
Relative humidity			5%~95% non-condensing
Thermal methods			Fanless design, natural heat dissipation
MTBF			100,000 hours
Mechanical Dimensions
Product size			44024544mm
Installation Method			Rack mounted installation
Weight			3.6KG
EMC&INGRESS PROTECTION
IP Level			IP40
Surge protection of Power			AC: IEC 61000-4-5 Level 3（4KV/2KV）（ 8/20us） DC: IEC 61000-4-5 Level X（ 8KV/8KV）（ 8/20us）
Surge protection of Ethernet port			IEC 61000-4-5 Level 3（4KV/2KV）（ 10/700us）
RS			IEC 61000-4-3 Level 3 （ 10V/m）
EFI			IEC 61000-4-4 Level 3 （ 1V/2V）
CS			IEC 61000-4-6 Level 3 （ 10V/m）
PFMF			IEC 61000-4-8 Level4（ 30A/m）
DIP			IEC 61000-4-11 Level3 （ 10V）
ESD			IEC 61000-4-2 Level 4 （ 8K/15K）
Free fall			0.5m
Authentication
Authentication）			Inspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology, CE/FCC/RoHS
Accessories
Accessories			Equipment, terminals, certificate of conformity, instruction manual, power adapter (optional)
Optional model
XPTN-9000-85-12GX16GT-HR-V			12 Gigabit optical, 16 10/100/1000M electrical ports, AC&DC hybrid power supply
XPTN-9000-85-12GX16GP-R-V			12 Gigabit optical, 16 10/100/1000M electrical ports, dual DC power supply, supporting PoE&PoE+
XPTN-9000-85-12GX16GT-ACR-V			12 gigabit optical, 16 10/100/1000M electrical ports, single AC power supply

XPTN-9000-85-12GX16GT-HR-V
